ORTHO-SUV FRAME – A NEW GENERATION COMPUTER ASSISTED EXTERNAL FIXATION DEVICE
Ortho-SUV Frame is an advanced extension of traditional Ring Fixator developed in Russia as a single step solution for treating complex deformities and fractures.
Ortho-SUV Frame is in use from 2006 & has successfully proven the results for more than 200 patients.
SHPOPL is supporting traditional Ring Fixation device supply across the globe since last 21 years.
Ortho-SUV Ltd. and SHPOPL have joined hands to present revolutionary computer assisted new generation external fixation device – Ortho-SUV Frame.
Q . What does the Ortho-SUV Frame consist of?

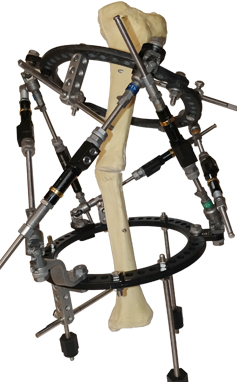

The Ortho-SUV Frame consists of proximal and distal supports connected by six telescopic rods of special construction (strut). For additional rigidity additional stabilizing supports can be used as required.
Q . How does the Ortho-SUV Frame work?
Range of parameters taken from the frame and x-rays are inserted into the specially designed software for Ortho-SUV Frame. The software gives the user a mathematically precise prescription on what changes of length must be made to each strut to achieve the desired correction of deformity.
Thus, Ortho-SUV Frame with software eliminates the need of making multiple complex calculations for location of Hinges and distraction of threaded rods used in traditional Ilizarov device.
Ortho-SUV Frame has the best reduction and fixation capabilities in comparison with its closest competitors.
Wide range of indications:
Long bones deformities of any complexity
Two level bone deformities
Complex foot deformities
Severe contractures and old subluxations of large joints
Extra articular fractures of long bones
Special Features:
Reduced Surgery Time
Lesser Inventory
Single stage correction for Multi Planar Deformity & Fracture Reduction
No predetermined places for Strut Fixations
Dual Mode Struts – Fast & Gradual Correction Mode.
Advanced usefriendly software
Can be placed on any desk top or lap top computer.
No Internet connection required for using the software.
The main steps have the protection from user error with data input.
Uses standard orthopedic terminology.
Parameters to be manually input in the software lower by 31-36% as compared to the competitors.
Works directly with the x-rays input in the software.
Significantlu increases the quality of work, simplifies and protect from human error.
Incorporates standard tracing of anatomic and mechanical axes of bone fragments, planning and visualization.
Automatically prevents the danger of tractional damage of main vessels and nerves, hypoplastic regenerate formation caused by the odd distraction rate of deformity correction.
